//Quadraticr planning command
//

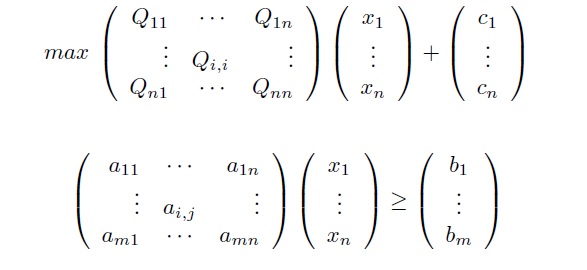

//Quadratic planning is the method of finding a vector x
//that maximizes (minimizes) the quadratic matrix (Q) n*n + vecotr (c) n formula.
//under the following linear constraint matrix (a) n*m + vector(b) m with constraint operater.
//



//The qlp data format is arranged by quadratic formula as bellow.


//Syntax
qlp (variables) by joken ans/
(conditions)
;
//(conditions) are convergency conditions.
eps=0.xxx  //xx is convargency condition
loo=nn     //nn is loop max in convergency
//
//Example

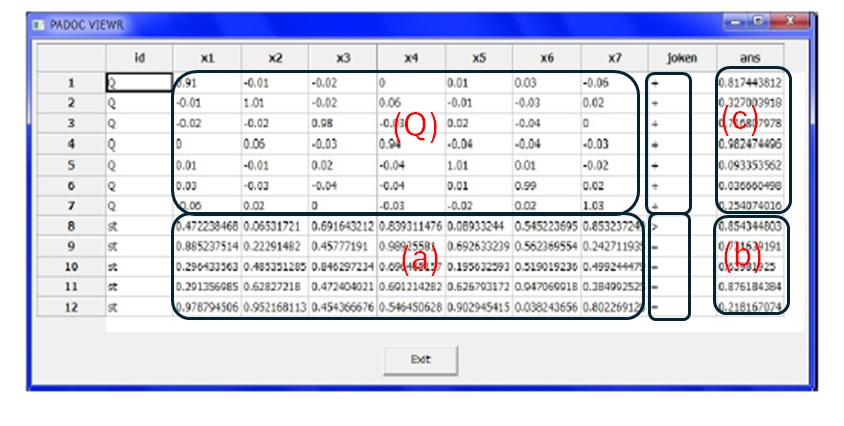

get qpldatRV.csv@;
qpl x1-7 by joken ans/
eps=0.005
loop=100
;

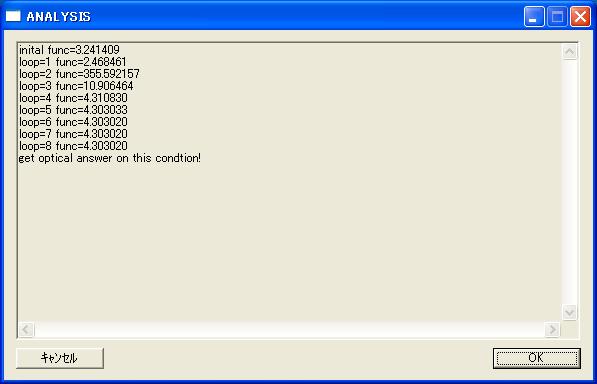

//The result is convergency process and solved output 7 variables as following.



//
//Comform this solution is satisfied by constraint condition as bellow.
//
//get solved vector tranformed.
anaget;
transpose;
select col_1;
put ans;
view;
/**

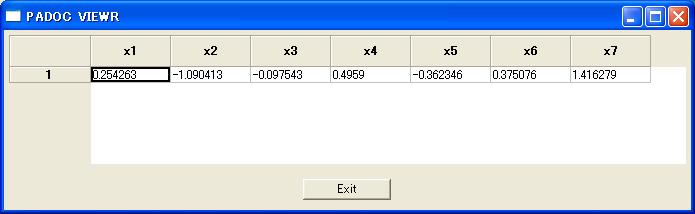

   LINES	col_1
       1	0.254263
       2	-1.090413
       3	-0.097543
       4	0.4959
       5	-0.362346
       6	0.375076
       7	1.416279
**/
//Get constraint matrix (a) n*m from inputed data;
get qpl8RV.csv@;
select id x1-7;
if(id == "a") outrec;
//Multi solved vector x with constraint (a) for (a)(x).
mxmult x1-7 by ans;
put ans1;
//Compare multiplied (a)(x) and (b) for satisfaction of constraint value.
get qpl8RV.csv@;
if(id == "a") outrec;
select joken ans;
put inp;
get ans1;
//Concatinate (a)(x) and (b) for comparison.
merge inp by #;
view;
/**

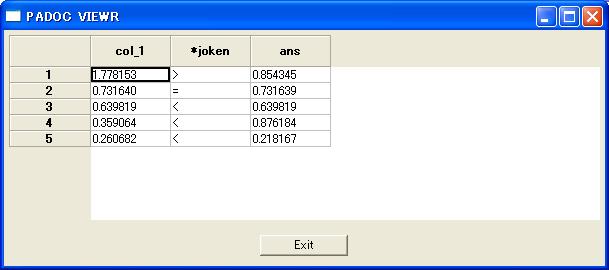

   LINES	col_1	joken	ans
       1	1.778153	>	0.854345
       2	0.731640	=	0.731639
       3	0.639819	<	0.639819
       4	0.359064	<	0.876184
       5	0.260682	<	0.218167
**/
