//Principal decomposition analysis command
//
//This command transforms data to principal coordinate data.
//

//Syntax no options.
prin [variables];

//Syntax used options
prin [variables]/
[options]
;

//Options
input:corr   //calculate principal from correlation data.
input:cov    //calculate principal from covariance data.
input:direct //calculate principal from original data(default).

//
//Example 1
//

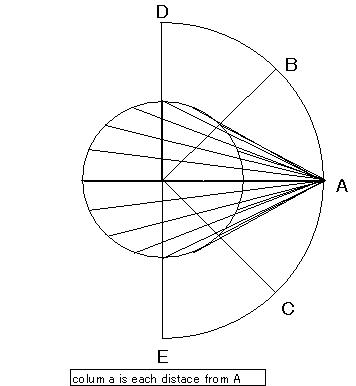

//Read data that are 16 distances from each points inner circle to the A�`E point on half outsize circle.

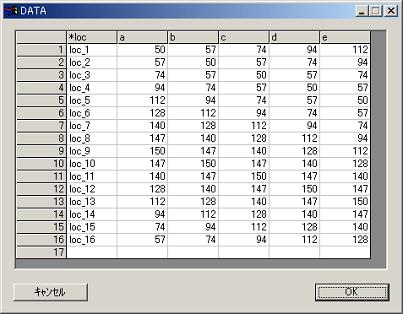

get princomp1.csv@;





//principal analysis
prin a b c d e;

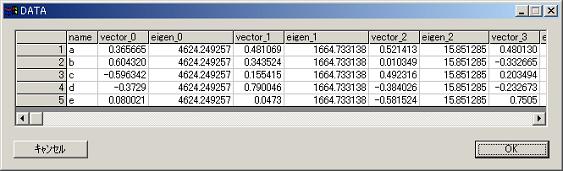

output are paired by eigen value and aigen vector.



//Inspection of pricipal analysis using 3D graph.
//Get principal data from output;
get freq@ana;

//select two vector by meaningful eigen values.

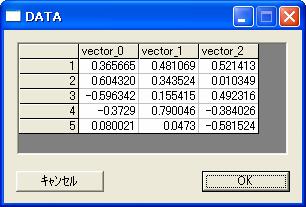

select vector_0 vector_1 vector_2;
put prin;




//Read original data again.
get princomp1@;

//Calcurate score by matrix multiplication with original data and principal data.
mxmult by prin;

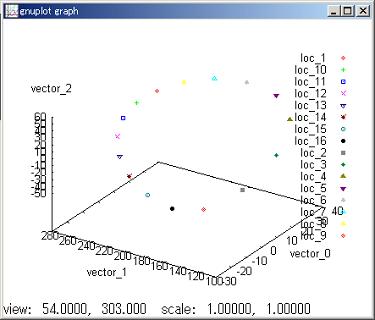

//Plot principal score in 3D graph
plot scat vector_0 vector_1 vector_3;
